5. Using the built-in Screen

The built-in 7-segment screen is a useful tool to show text or numbers that enhances the functionality of the program or help with the debugging process.

Screen Pages

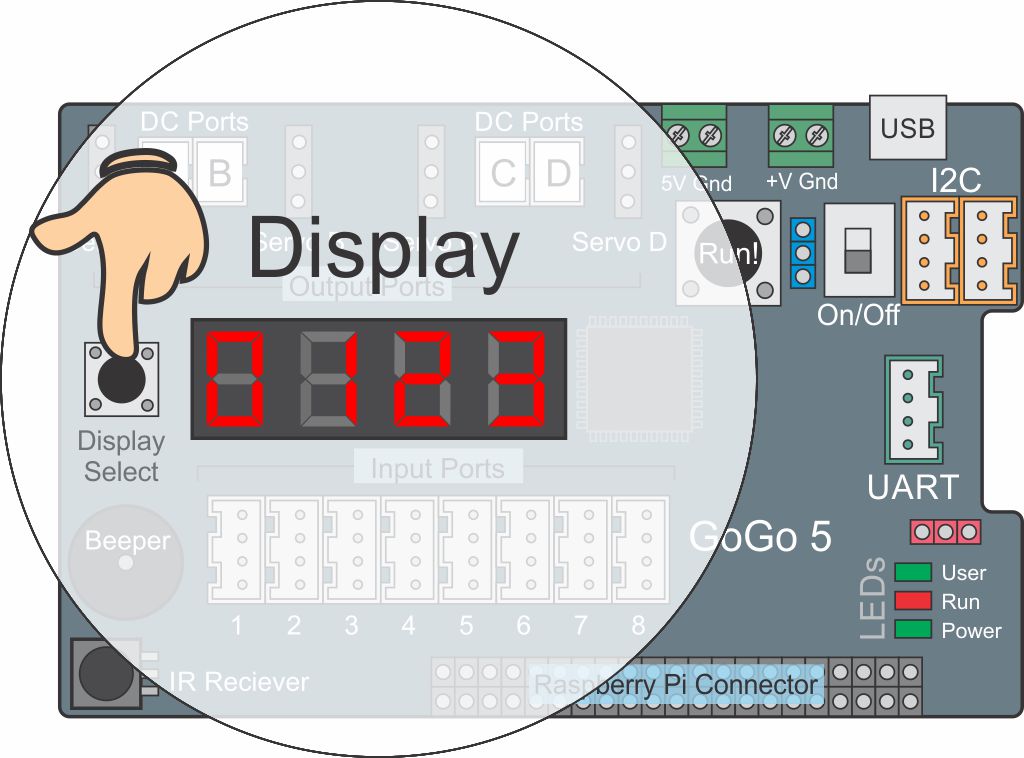

The built-in screen consists of many pages, each displaying different values as shown below. Press the “Display Select” button near the screen to cycle through pages.

• User. This is the default screen where all the values from the user program will be shown.
• Off. This screen is used to deactivate the screen.
• Sensor 1 - Sensor 8. Each screen will show sensor values from the corresponding port number.
