7.3 DC Motor Control

Connect a DC motor to port A and try the code below using either Logo or Tinker.

to motorcontrol
    a, on wait 10 off
    beep
end

This program will turn on motor A for 1 second (the wait command has a unit of one-tenth of a second)

Motor Selection

Before performing any action, a motor port or ports must first be selected. In Logo, this is done using the port name followed by a comma. For example, “a,” will select port A. “ab,” will select both port A and B. “abcd,” will select all four ports. Notice that the alphabetical order does not affect port selection. That is “abcd,” is the same as “dcab,”.

In Tinker, motor port selection is done visually using the “talk to motor” block. Tick on the port name to select that port. The example below will select port A.

Motor Actions

Once a port or ports have been selected, actions can be performed on them as shown below.

Tinker	Logo	Action on the selected motor(s)
	on	Turns on
	off	Turns off
	onfor 1	Turns on for one-tenth of a second. This number can be changed.
	cc	Rotate motor clockwise
	ccw	Rotate motor counter-clockwise
	rd	Reverse the current rotation to the opposite direction.
	setpower 100	Set the power level to 100. This number can be between 0 (off) to 100 (full power).

Motor State

The on-off state of the motor ports can be tested using the following reporter.

Tinker	Logo	Value
	aon?	Returns “true” if the specified motor is “on”. If more than one port is selected, returns “true” only if all ports are on.

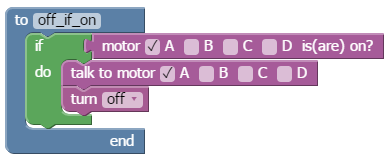

Here’s an example that will turn off port A if it is on.

to off_if_on
    if aon? [ a, off]
end
